| OCTG Pipes | |||
|---|---|---|---|
Brand | CTA, NSC, JFE, Tenaris, Non-brand | ||
Country Origin | Indonesia, Jepang, Singapura, Amerika Serikat, China | ||
Pipe Size | Tubing: 2-3/8″ – 7″ Casing: 4-1/2″ – 26″ Conductor Casing: 16″ – 26″ | ||
Produk | Tubing, Casing,Drill pipe, Coupling, Drill Collars | ||
Pipe End | P – plain-end, N – non-upset, with threaded and coupled U – external-upset, with threaded and coupled I – whole joint or other special threads / S – short round thread, L – long round thread, B – buttress thread | ||
Standard & Grade | API 5CT – H40, J55, K55, M65, L80-1, N80-1, N80Q, C90, P110, Q125 API 5DP – E75, X95, G105, S135 | ||

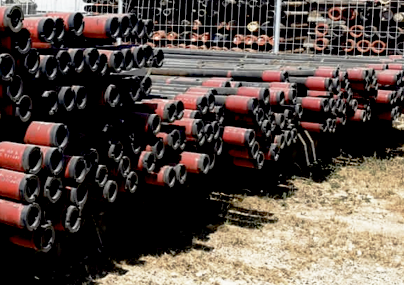

Tubing
OD: 48.26mm-114.3mm
WT: 3.18 mm – 16 mm
LENGTH: R1, R2, R3
Pipe Standard: API 5CT PSL1/PSL2 J55, K55, N80-1, N80-Q, API 5CT PSL1/PSL2 L80-1, L80-9Cr, L80-13Cr, C90, C95, P110, Q125

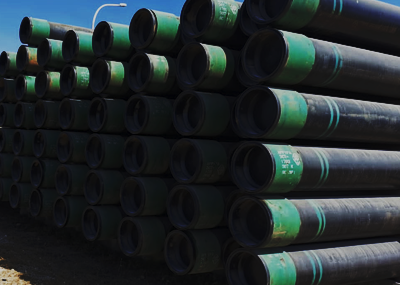

Casing
OD: 114.3 mm – 508 mm
LENGTH: R1, R2, R3
Pipe Standard: API 5CT PSL1/PSL2 J55, K55, N80-1, N80-Q, API 5CT PSL1/PSL2 L80-1, L80-9Cr, L80-13Cr, C90, C95, P110, Q125

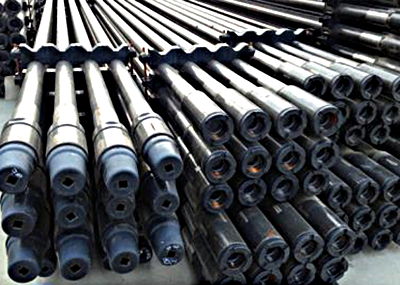

Drill Pipe
OD: 2-3/8″ to 7-5/8″
WT: 6.45 mm – 12.7 mm
LENGTH: R1, R2, R3
Pipe Standard: API 5DP E75, X95, G105, S135

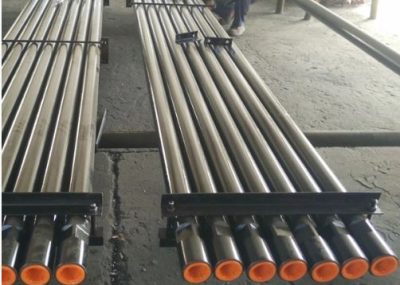

Drill Collars
OD: 3 1/8″-11″
LENGTH：30Ft / 31Ft / 43Ft / R1~R3
Connection type: NC , REG , FH, IF
Thread: NC26, NC31, NC38, NC40, NC46, NC50, 5.1/2FH
Material: Stainless Steel/Alloy steel/ 4145H/ Carbon steel
Standard: API 5DP/API Spec 7-1

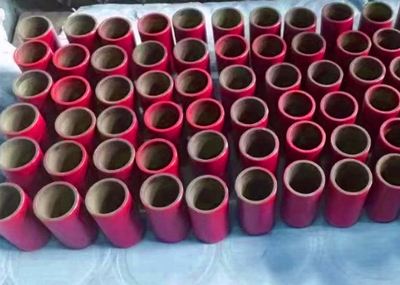

Coupling
OD : 1.8/9 – 4-1/2″, 4-1/2″ – 13-3/8″
Pipe Standard: API 5CT and 5B PSL1/PSL2 J55, K55, N80-1,N80-Q, API 5CT and 5B L80-1, C90, C95, T95, P110, Q125
